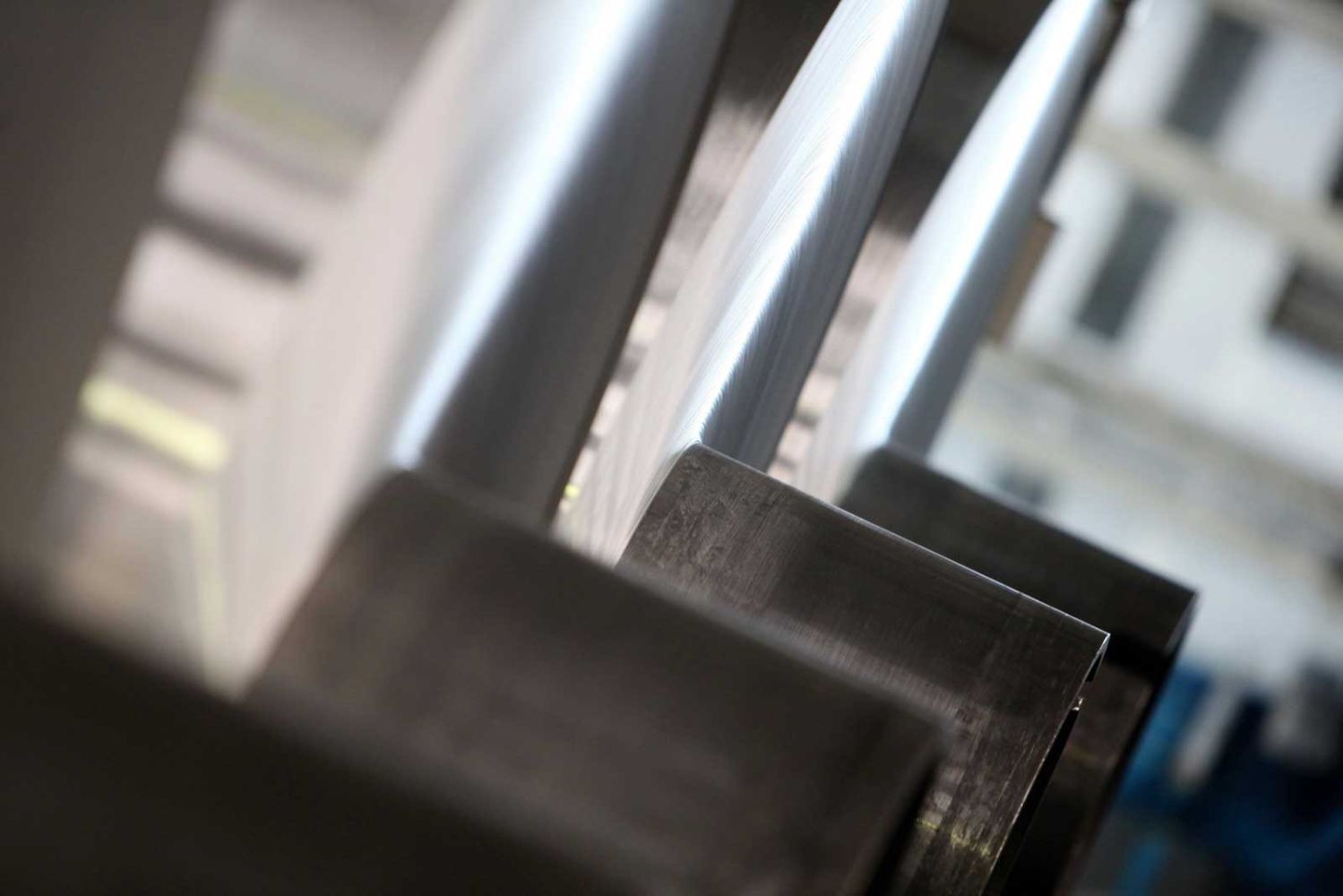

Cold rolled coils

Production Tehnology

Produced by cold rolling technology (rolling in a cold condition) in 1-7 passes down to the requested strip gauge on 4-high mills.

Rolling oils (oil derivative with special additives) are used as cooling and lubricating agents.

When engraved rolls with specific patterns are introduced into the roll stack, tread coils are obtained instead of smooth cold rolled coils.

After cold rolling operation, coils are forwarded to one or more additional operations: annealing, trimming, slitting, degreasing, tension leveling (stretching), leveling, embossing, coil coating, roll forming and cut to length.The number of operation(s) depends on delivery requirements.

Cold rolled coils may be produced out of 1xxx, 3xxx, 5xxx and 8xxx series alloys, while product quality is reached based on customers’ demands, according to tables referring to alloys and tempers..
PlaincoilsCoated coils laminationEmbossed coilsTread coils
Plaincoils
Features Thickness Width Inner diameter
Cold rolled, mill finish,
untrimmed, non-degreased, non-tension leveled 		3,0 - 6,0 900 - 1650 600
Cold rolled, mill finish,
trimmed, non-degreased, non-tension leveled

2,1 - 3,0 300 - 1500 500, 600
Cold rolled, mill finish, trimmed
(degreased, leveled, tension leveled from 0.2-2.0 )

0,2 - 2,0 20 - 600 400, 500
Cold rolled, mill finish, trimmed ,
leveled, degreased, tension leveled from 0.2-2.0

0,2 - 2,0 300 - 1500 500, 600
Cold rolled, mill finish, trimmed,
degreased, tension leveled, leveled up to 0.8 , cardboard core 		0,2 - 0,8 75 - 1500 300, 400, 500, 600
All data referring to strip thickness are due to alloys, tempers and DI/DO and shall be defined according to each concrete customers’ requests.
PROTECTIVE PVC FILM: conventional, laser-cut (according to customers’ requests)
DESPATCH: with or without cardboard core
Coated coils lamination
Features Thickness Width Inner diameter
Al and Al alloys, cold rolled,
trimmed, tension leveled, leveled, RAL colour chart, lamination 		0,2-1,5 300-1500 500, 600
Al and Al alloys, cold rolled,
trimmed, tension leveled, leveled, RAL colour chart, lamination 		0,2-1,5 20-600 400, 500
Al and Al alloys, cold rolled, trimmed,
tension leveled, leveled, RAL colour chart, lamination, cardboard core 		0,2-0,8 75-1500 300, 400, 500, 600
Steel coils, RAL colour chart, lamination 0,15-1,0 1000-1500 500, 600
All data referring to strip thickness are due to alloys, tempers and DI/DO and shall be defined according to each concrete customers’ requests.
PROTECTIVE PVC FILM: conventional, laser-cut (according to customers’ requests)
DESPATCH: with or without cardboard core
Embossed coils
Features Thickness Width Inner diameter
Cold rolled, trimmed, tension leveled,
leveled, coated, plain, STUCCO D2010		 0,35 - 1,2 300 - 1500 500, 600
Cold rolled, trimmed, tension leveled,
leveled, coated, plain, STUCCO D2010, cardboard core 		0,35 - 0,8 75 - 1500 300, 400, 500, 600
Al and Al alloys, cold rolled, trimmed,
tension leveled, leveled, RAL colour chart, lamination, cardboard core 		1,2 - 1,5 300 - 1000 500, 600
All data referring to strip thickness are due to alloys, tempers and DI/DO and shall be defined according to each concrete customers’ requests.
PROTECTIVE PVC FILM: conventional, laser-cut (according to customers’ requests)
DESPATCH: with or without cardboard core
Tread coils
Features Thickness Width Inner diameter
Col rolled, untrimmed,
2-bar & 5-bar patterns
 1,5/2,0 – 5,0/6,5 1000 - 1530 600
All data referring to strip thickness are due to alloys, tempers and DI/DO and shall be defined according to each concrete customers’ requests.
PROTECTIVE PVC FILM: conventional, laser-cut (according to customers’ requests)
DESPATCH: with or without cardboard cor

Alloys

Material tempers

Rolled product catalogue (6.34 MB)
Catalogue Impol - Impol Seval (3.44 MB)
